A parent moving in
Everything is on one level, with a real bedroom, a walk-in shower, and the bathroom right outside the bedroom door.
ADU plans · County Plan E
A 1‑bedroom ADU in 800 square feet.
A separate bedroom at one end, the living room at the other, and the kitchen in between.
County Plan E is L-shaped, so the front door sits in a sheltered corner. Inside, the living and dining rooms run the full depth of the home, and the bedroom has the far end to itself.
Start with this plan ↗See the floor plan ↓
- Size
- 800 sq ft
- Bedrooms
- 1
- Bathrooms
- 1
- Ceilings
- 8 ft

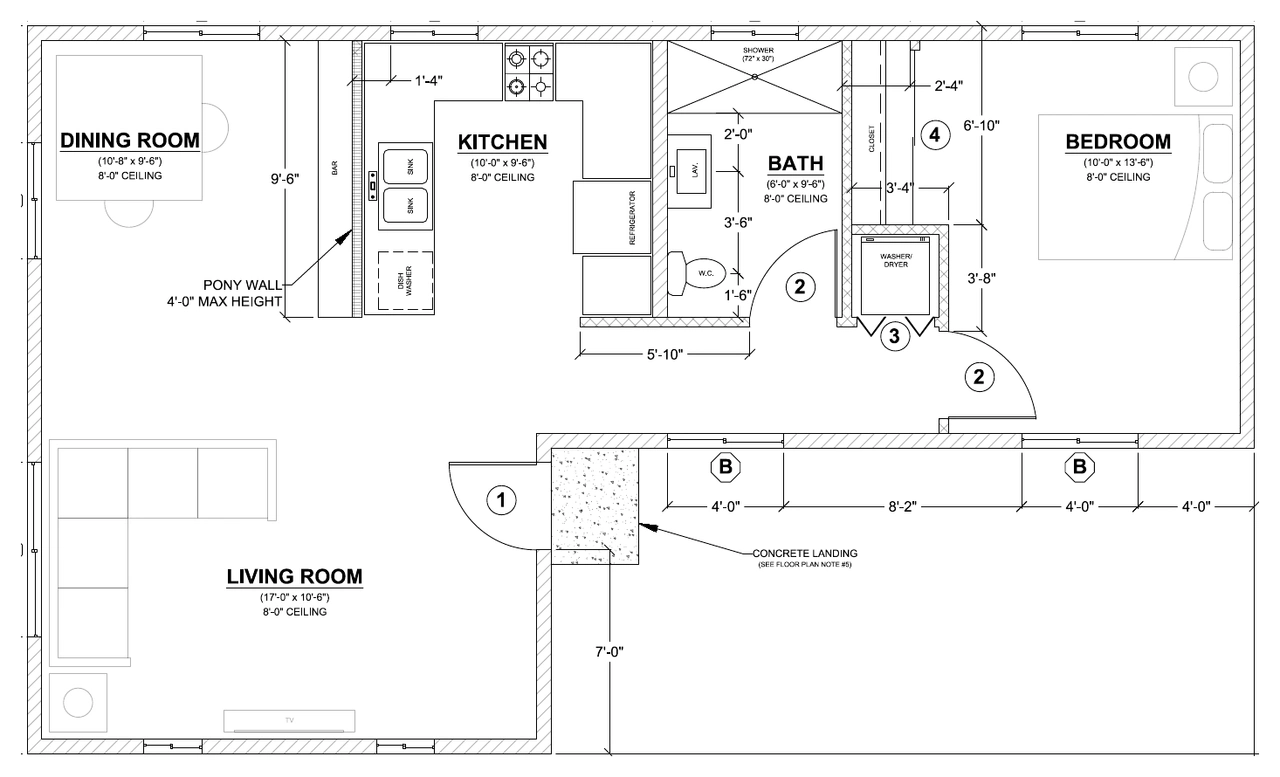

The floor plan
Room by room.

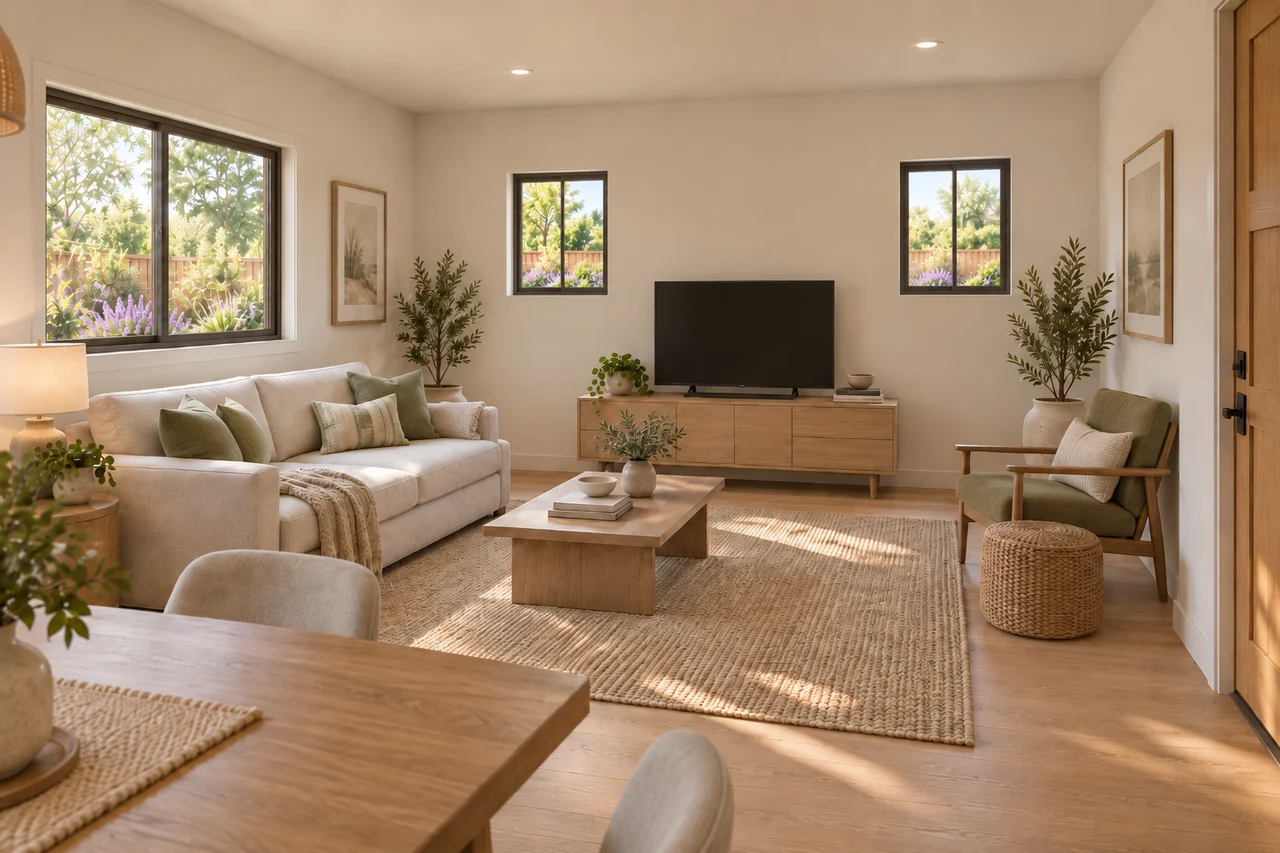

Living room 17′ 0″ × 10′ 6″
The front door opens here, with room for a sectional and a TV wall.
Dining room 10′ 8″ × 9′ 6″
Open to the living room, beside the kitchen bar.

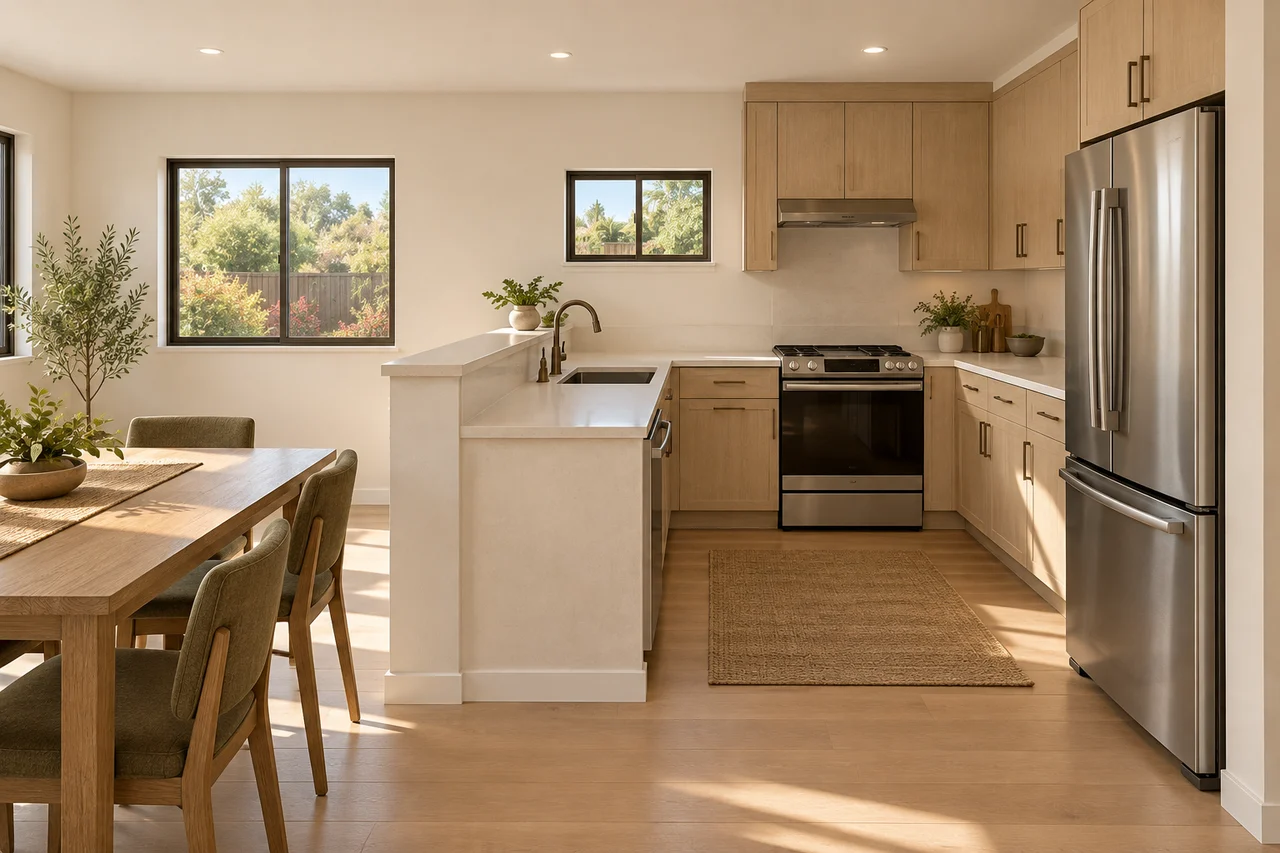

Kitchen 10′ 0″ × 9′ 6″
A range, a double sink, a dishwasher, and a bar counter facing the dining table.

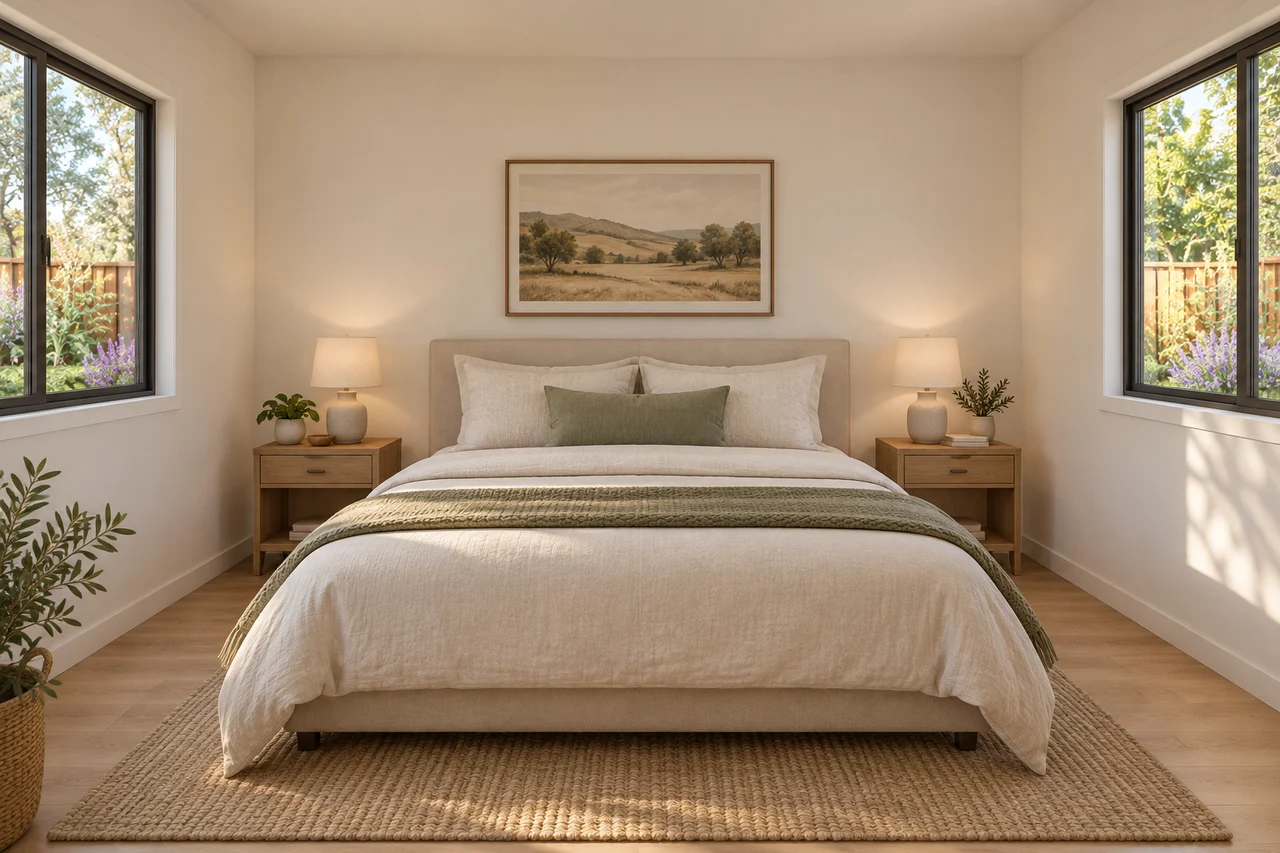

Bedroom 10′ 0″ × 13′ 6″
Fits a queen bed with a nightstand on each side, with a closet by the door.

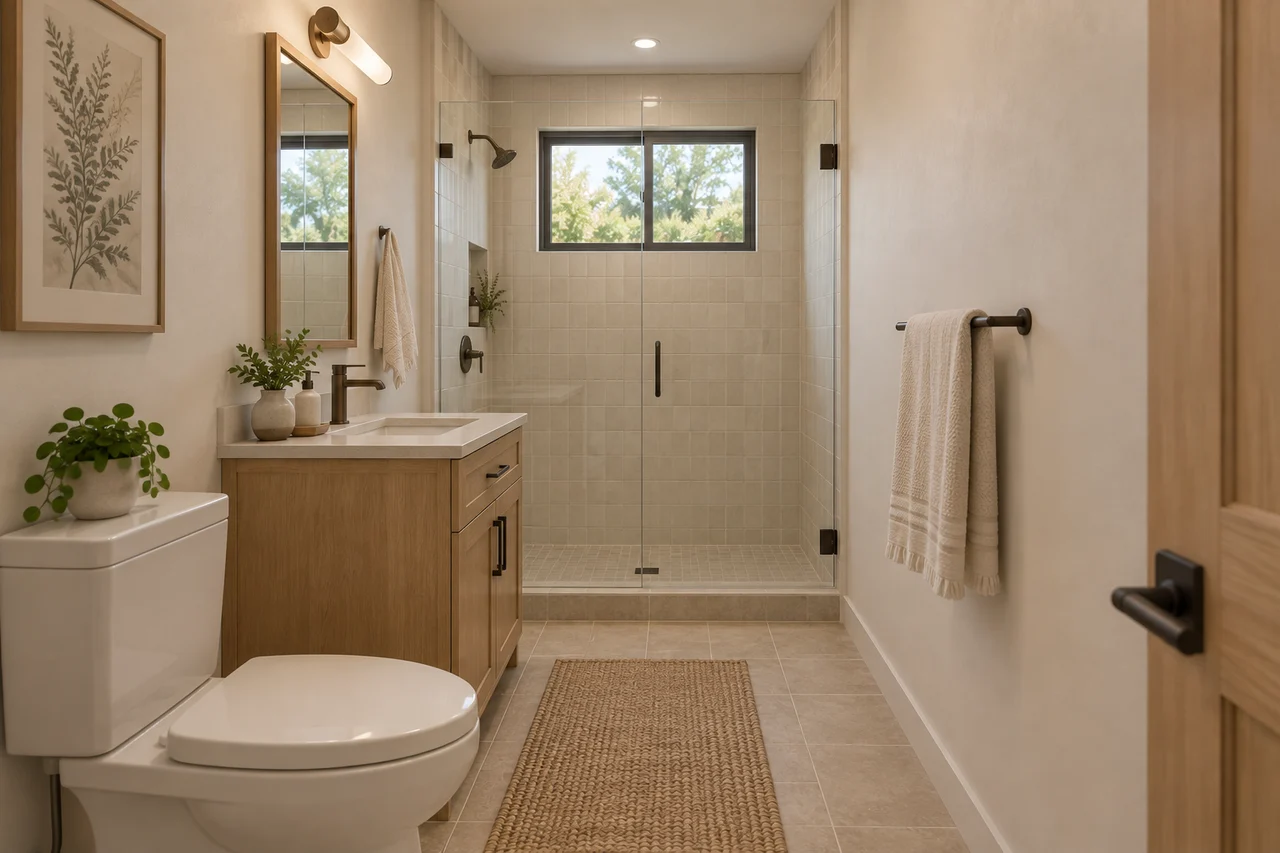

Bathroom 6′ 0″ × 9′ 6″
A six-foot walk-in shower.
Laundry
A washer and dryer closet outside the bedroom.
Ceilings
Eight feet throughout.
Walk through it
See every room.
An L-shaped plan gives the entry a sheltered corner. The kitchen opens toward dining, with a separate bedroom at the far end of the home.
Based on San Diego County Plan E. Concept finishes and visualization by Untapped Home. Visualizations show proposed interiors and landscaping.
Who it suits
Who this plan works for.
Renting it out
A full one-bedroom home with its own laundry is the kind of place a single renter or a couple stays in.
Guests and work
Room for family to stay as long as they like, or a quiet office with a door between work and the rest of the home.
Working with us
Make it yours.
We start from the County’s drawings and work out the rest with you: the finishes, the windows, how the kitchen works, and how the home sits on your lot and faces the yard.
You see it before anything is built. We show you each room and refine the design together until it is right.
Keep the finished design to plan from on your own, or have us carry it through the building plans, the required specialists, and the permit.
